處理器:1顆(四核或二核)
Intel® Xeon® E3-1200 v3 processor
Intel® Core™ i3 processors
Intel®Pentium®processors
記憶體:4 x DIMM slots (雙通道)
最高達32 GB DDR3 1600 DIMM
擴充槽:
PCIe® 3.01 x16
PCIe® 2.0 x8 (x4 lane)
PCIe® 2.0 x8 (x1 lane)
PCIe® 2.0 x4 (x1 lane)
端口與連接器:
前:2 x USB 3.0 ports
後:6 x USB 2.0 ports
Gigabit LAN port (RJ-45)
Serial port/Video port
電源供應:
500 W 80 PLUS®power supply
尺寸(寬 x 深 x 高):
180mm x 450mm x 358mm
SATA RAID2:Intel® C222 chipset with RSTe RAID support, SATA RAID 0, 1, 5, 10 (僅 Windows OS)
SAS RAID :4-port SAS RAID card, 支援 SAS RAID 0, 1, 5, 10 (選項)
作業系統:(可選擇)
Microsoft® Windows Server® 2012
Microsoft® Windows Server® 2008 R2 SP1
Red Hat® Enterprise Linux® 6.4
Red Hat® Enterprise Linux® 5.9
Novell® SUSE® Linux® Enterprise Server 11 SP3
VMware ESXi 5.0 update 1
處理器:(可選擇)1顆
Intel®Xeon® E3-1200 v3 processors
Intel® Core™ i3 processors
記憶體:
4 x DIMM slots(2 DIMMs per channel)
最高達 32 GB,using unbuffered DDR3L ECC DIMM
擴充槽:
PCIe®3.0 x16/x8 (x16 connector)
PCIe® 3.0 x0/x8 (x8 connector)2
PCIe® 2.0 x4 (x8 connector)
PCIe® 2.0 x1 (x4 connector)
端口與連接器:
前:2 x USB 3.0 ports
後2 x USB 3.0/4 x USB 2.0
2 x Gigabit LAN port (RJ-45)
Serial port/Video port
Management port
電源供應:
500 W 80 PLUS® Gold-certified fixed
尺寸(寬 x 深 x 高):
190mm x 485mm x 420mm
SATA RAID2:Intel® C224 chipset with RSTe 3.6 RAID support, SATA RAID 0, 1, 5, 10 (僅 Windows OS)
SAS RAID :SAS RAID add-on card, support RAID 0, 1, 5, 10 (選配)
作業系統:(可選擇)
Microsoft® Windows Server® 2012 R2
Microsoft® Windows Server® 2012
Microsoft® Windows Server® 2008 R2 SP1
Red Hat® Enterprise Linux® 6.4
Red Hat® Enterprise Linux® 5.9
Novell® SUSE® Linux® Enterprise Server 11 SP3
VMware ESXi 5.1 update 1

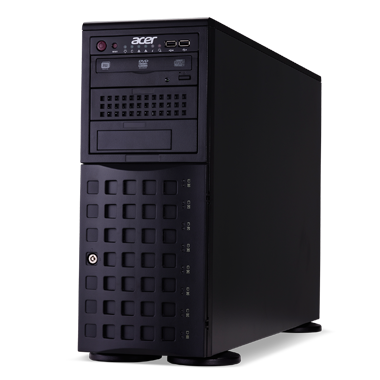

處理器
Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 & v4 family
記憶體:
16x 288-pin DDR4 DIMM slots
最高達 1TB ECC LRDIMM, 512GB ECC RDIMM
擴充槽:
3x PCI-E 3.0 x16(Full-height, Full-length)
3x PCI-E 3.0 x8(Full-height, Full-length)
端口與連接器:
前: 2x USB 2.0
後:2x USB 3.0 + 2x USB 2.0
1x VGA port
Serial port- 1x COM/Serial
USB Header:2x3.0,2x2.0,1xType A
1x RJ45 Dedicated IPMI LAN port
2x RJ45 Gigabit Ethernet LAN ports
電源供應:
920W high-efficiency ( Platinum Level ,94%+) AC-DC Redundant power supplies with PMBus and I2C
尺寸(寬 x 深 x 高):
178mm x 648mm x 437mm
AHCI SATA:
8x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10
2x SATA3 powered ports that support SATA DOM
作業系統:(可選擇)
Microsoft® Windows Server® 2012 R2
Microsoft® Windows Server® 2012
Microsoft® Windows Server® 2008 R2
Microsoft® Windows Server® 2008
Red Hat® Enterprise Linux® 7
VMware ESXi™ 5.5U2
